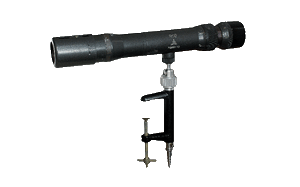

1N10


Zoom monocular


Monocular is the compact device for observation with adjustable magnification 4-20x. There are the removable light filter for contrast increasing in reduced illumination or fog conditions and the retractable blind. Reticule is supplemented with the range and angle-measure scales. Device is equipped with the holder for mounting on a suitable support.

Specifications

Magnification, x 4-20
Field of view, deg 1.5-8.5
Exit pupil diameter, mm 1.4-7
Eye relief, mm 15
Limiting resolution, arc. sec, at magnification 4x/at magnification 20x 20/10
Diopter adjustment, diopter от -5 до +10
Overall dimensions , mm 190x265x42
Weight, kg 0.45
