1N11

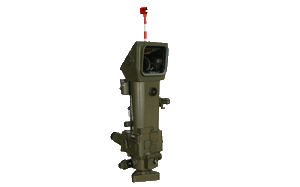

Artillery reconnaissance device


The device is intended for area surveillance, reconnaissance and artillery fire correction. The device is built as binocular periscope with two magnifications (10 and 20x). There are the laying mechanisms and the angle measurement scales for azimuth and elevation. Device is equipped with the mounting tripod and the level. There is the set of light filters for contrast increasing and protection against laser irradiation 1.06 mm. For dark time operation the illumination of scales and reticule is provided.

Specifications

Magnification, x 10/20
Field of view, deg 6/3
Exit pupil diameter, mm 6.4/3.2
Eye relief, mm 20.7
Limiting resolution, arc. sec 3.5
Diopter adjustment, diopter ±5
Periscope height, mm 385
Angular range, mil, in direction/in elevation 60-00/± 03-00
Angle measurement accuracy, mil, in direction/in elevation 0-01/0-02
Fine scale division, mil, in direction/in elevation 0-01/0-01
Overall dimensions , mm 375x70x132
Weight, kg 23
