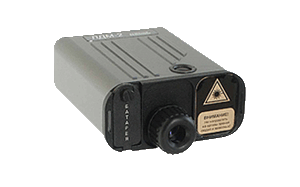

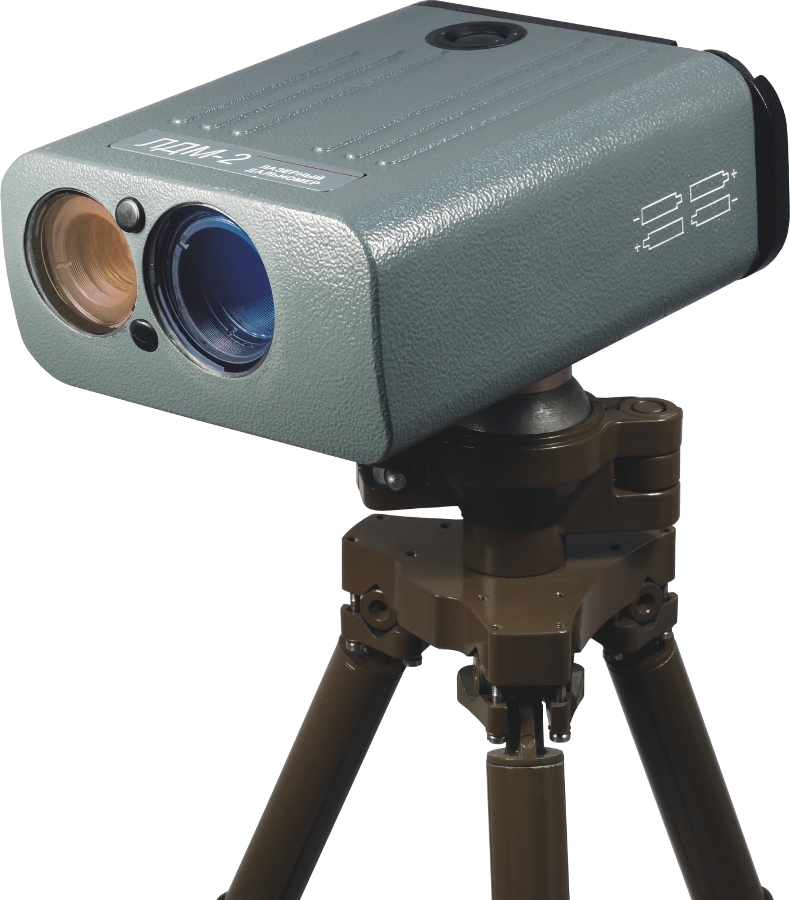

LDM-2


Small size laser range-finder


A small-size range-finder designed for quick distance measurement can be widely used in various constructive activities such as road or pipe line construction, as well as in forestry, navigation, hunting, in sniper divisions or intelligence service.

The laser impulse can be reflected from any large object including trees, clouds and any moving land or sky objects. To prepare the range-finder for operation, press the button on it and hold it 3-5 sec. When the letter “Г” appears, the device is ready for operation. Simply let the button off to make the measurement and see the result, which is kept on the screen in the field of view within 10 seconds. A special electronic scheme eliminates the noise and provides a precise result.

The range-finder can be used at a temperature range from –40 to 50 degrees Celsius, relative humidity up to 98% and the atmosphere pressure 60 kilopascal minimum. The device has a 1/4’’ thread to be joined to a pier.

Specifications

Magnification, x 6
Field of view, deg 6.5
Distance range, m 50-4000
Distance measurement inaccuracy, m 2.5
Laser wave length , mkm 1.06
Number of range measurements without changing a power supply 40-200
Diopter setting of eyepiece ±3
Exit pupil, mm 4
Eye relief, mm 20
Power supply 4xAA battery
Power supply voltage, V 5±1
Overall dimensions , mm 170х130х60
Weight, kg 0.9
