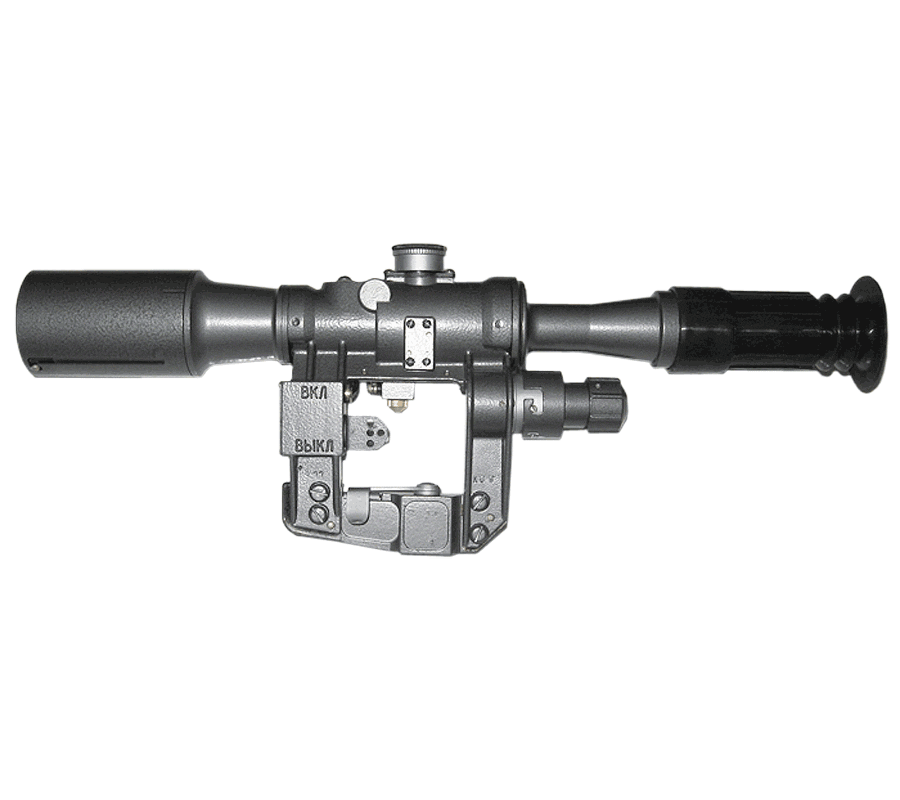

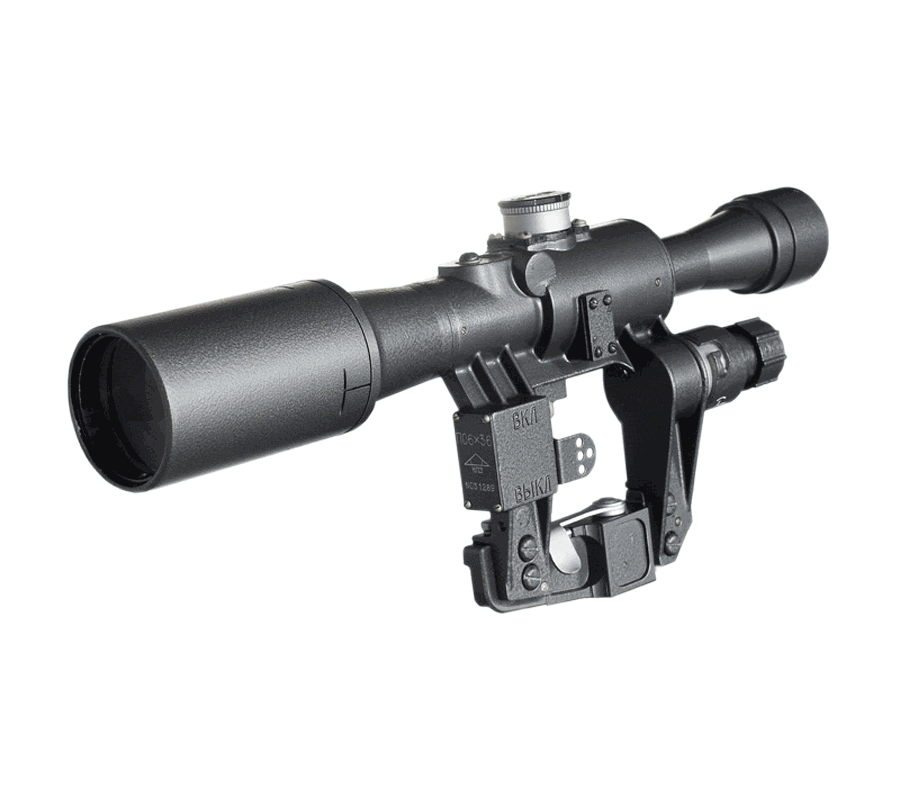

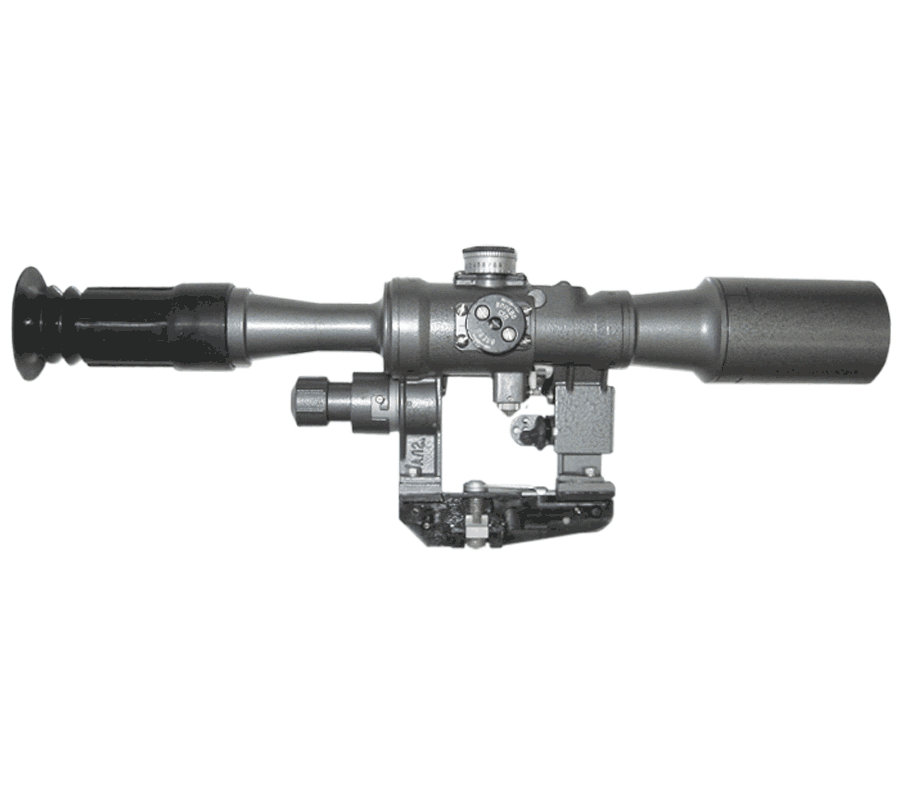

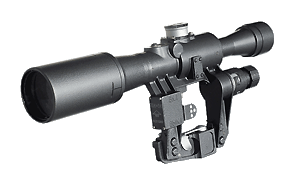

PO6x36


Day Optic Sights


Optical sight PO6x36 is designed to be mounted on a hunting weapon type “Tigr”., “Saiga”, “Vepr”.

The sight features reticle illumination, allowing for use under twilight conditions.

The sights are provided with two handwheels with scales which make it possible to input the required windage and elevation corrections during adjustment of fire and shooting.

The sights are designed to operate in an open air environment within a temperature range of -40 °C to +40 °C and relative humidity up to 95% at temperature + 25 °C.

Specifications

Magnification, x 6
Field of view, deg 4
Exit pupil diameter, mm 6
Eye relief, mm 66
Resolution limit, sec 12
Diopter setting of the eyepiece, D from – 0,5 to – 1
Overall dimensions, mm 410x136/151x72
Weight, kg 0.74

Used together with:

Tigr
SAIGA
Vepr-308
