SERVICE MANUAL


Печать
PRINT VERSION

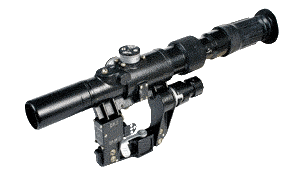

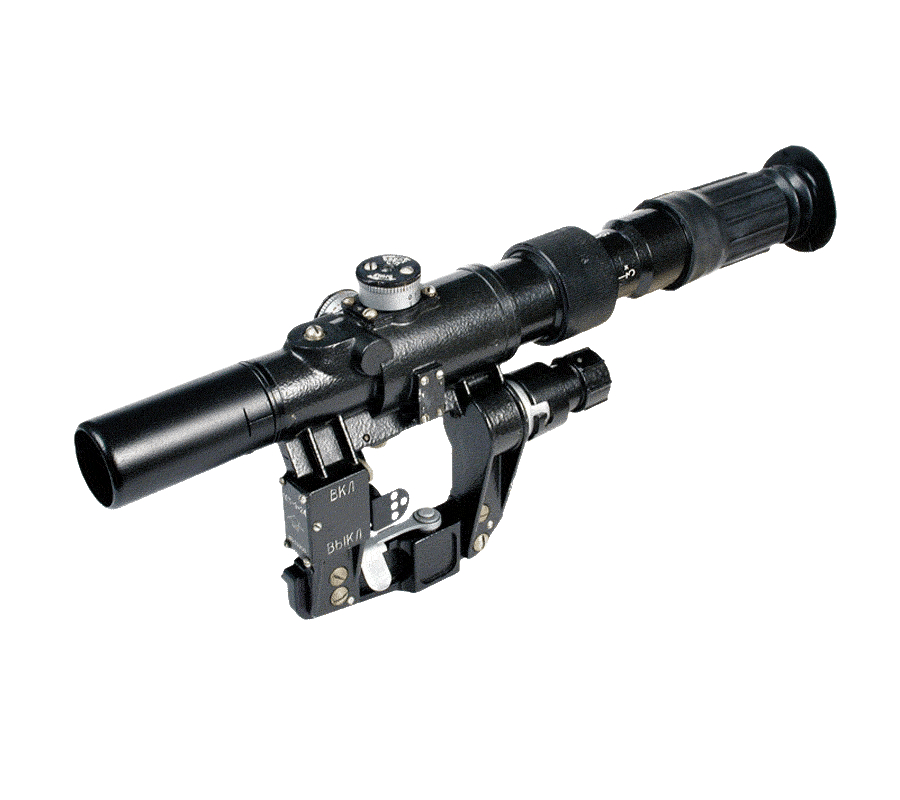

PO3-9x24


Pancratic Optic Sight

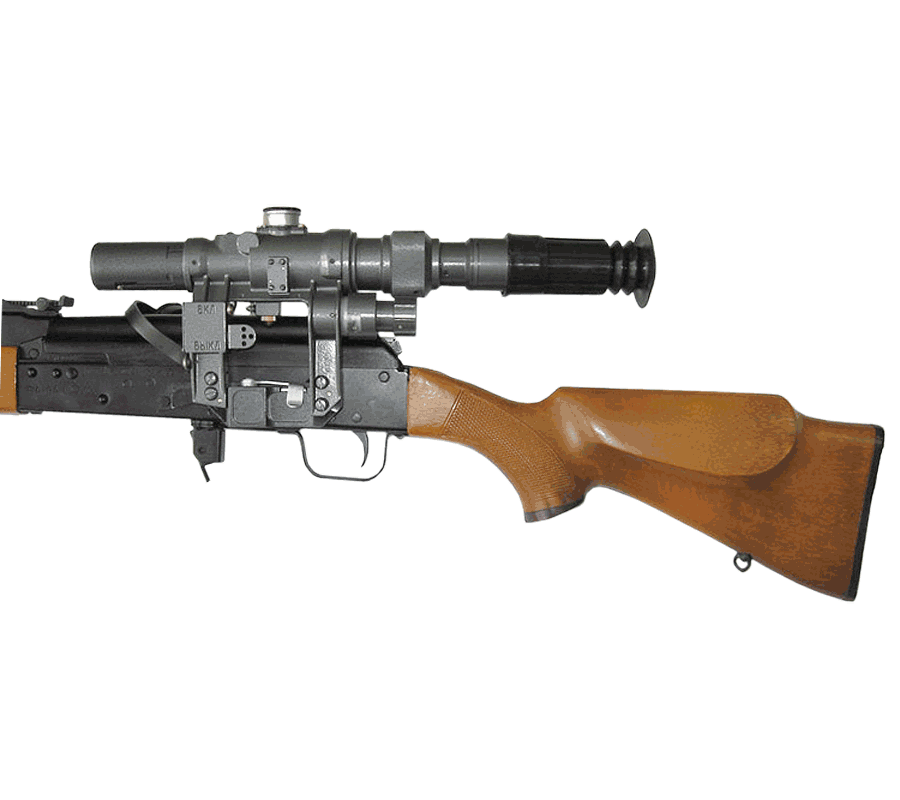

Pancratic optical Sights PO3-9x24, PO3-9x24-1 (hereinafter referred to as the Sight) with alternating magnification from 3x to 9x are intended for adjustment on hunting weapon. PO3-9x24 Sight is adjusted on the “Tiger” rifle, PO3-9x24-1 Sight is adjusted on the “Saiga” rifle. Reticule illumination allows aiming at twilight and night.

PO3-9x24 and PO3-9x24-1 Sights are designed for operating in ambient temperature range from -40 ?C to +40 ?C and relative humidity up to 95% at temperature +25 ?C.

Specifications

Magnification, x from 3 to 9
Field of view, deg, 3x/9x 6/2
Exit pupil diameter, mm, 3x/9x 3.9/2.6
Eye relief, mm, 3x/9x 71.6/70
Resolution limit, sec, 3x/9x 20/8.5
Diopter adjustment, d from -0,5 to -1
Overall dimensions, mm 410x136x72
Weight, kg 1.0

Used together with:

Tigr
SAIGA
