PO4x24


Optic Sights

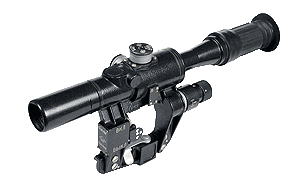

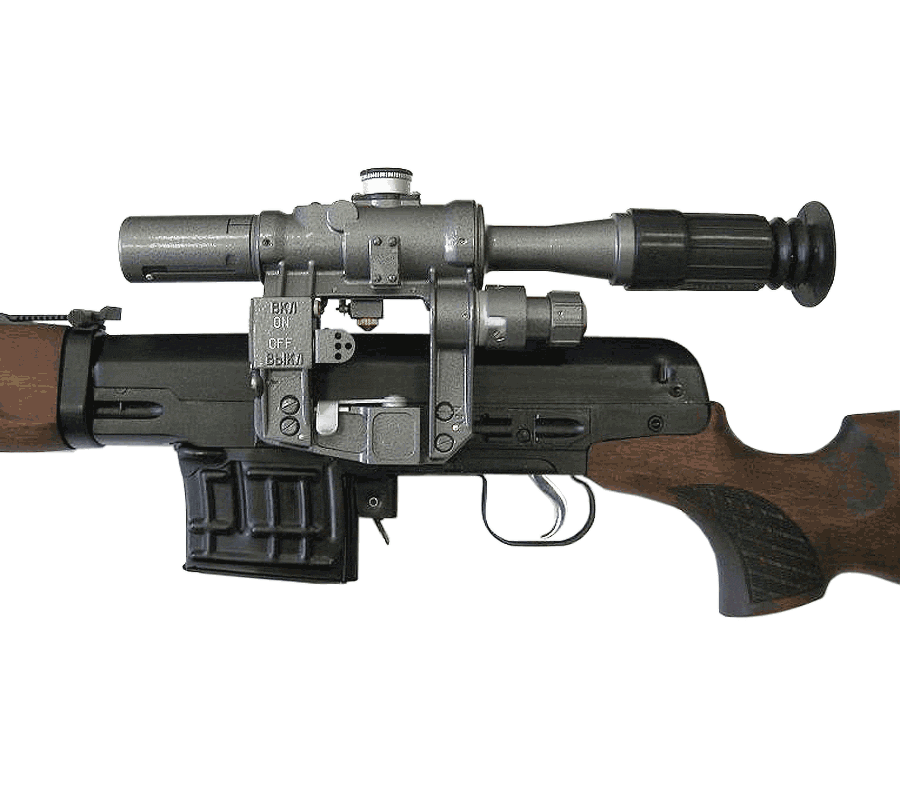

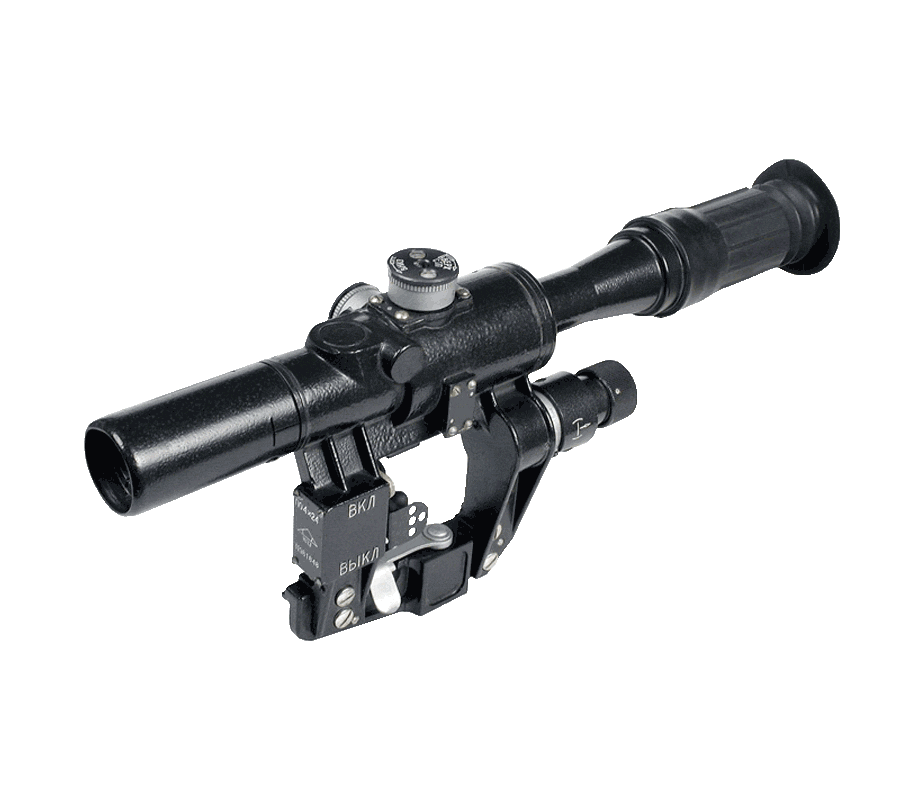

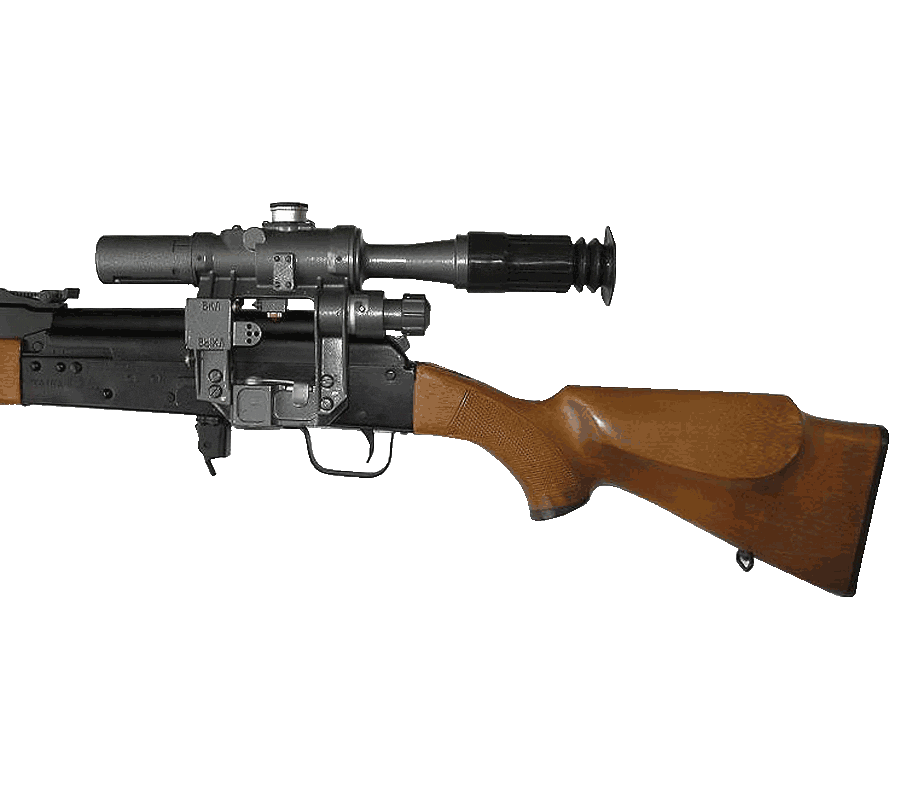

The Optical Sights PO4x24, PO4x24-1 (hereafter referred to as the sight) are designed to be mounted on the hunting weapon. The sight PO4x24 is mounted on the weapon type «Tigr», the sight PO4x24-1 is mounted on the weapon type «Saiga».
The sight features reticle illumination, allowing for use under twilight conditions.

The sights are provided with two handwheels with scales which make it possible to input the required windage and elevation corrections during an adjustment of fire and a shooting.

The sights are designed to operate in an open air environment within a temperature range of -40 °C to +40 °C and relative humidity up to 95% at temperature + 25 °C.

Specifications

Magnification, x 4
Field of view, deg 6
Exit pupil diameter, mm 6
Eye relief, mm 68.2
Resolution limit, " 12
Diopter setting of the eyepiece, D from -0,5 to -1
Overall dimensions, mm 337x136x72
Weight, kg 0.6

Used together with:

Tigr
SAIGA
Vepr-308
