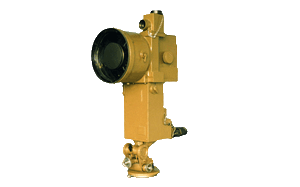

1PN54


Night observation device


Device is intended for area surveillance, reconnaissance and artillery fire correction in night conditions. It is built as the periscope with day and night channels. Device can be mounted on a tripod or in an armored reconnaissance vehicle as BRDM. Device embodies the elevation mechanism and scale. The direction and elevation mechanism with the direction angle scale is removable. Device is equipped with the compass and level. There are the controls for manual adjustment of reticule bright, focus adjustment of night channel lens, day/night mode switching, neutral light filter of day channel switching, lens shutter of night channel switching. The automatic screen brightness control is provided.

Technical characteristics

Recognition range of night channel, m 1500
Generation of image intensifier 1
Magnification for night/day mode, x 5.0/5.5
Field of view for night/day mode, deg 5.3/6
Exit pupil diameter for night/day mode, mm 4.5/4
Eye relief, mm 25
Diopter adjustment, diopter ±5
Periscope height for night/day mode, mm 357/489
Angular range, mil, in direction/in elevation 60-00/±3-00
Fine scale division, mil 0-01
Overall dimensions, mm 607x679x569
Weight, kg 18.5

Used together with:

K-316
