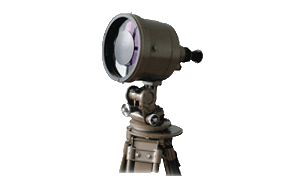

PDN-K


Long Range Night Vision Device


The PDN-K and PDN-KM Long Range Night Vision Devices are designed for long range observation at natural night illumination, temperature from –50OC to +50OC (depends on type of battery used) and relative humidity up to 80% at temperature 25OC. The Device is powered with two R6 GOST28125-89 power cells (AA size 14.5 x 50.5 mm) having aggregate voltage 3.0 V.

The adapter kit provides compatibility with a:

  • video camera provided with lens thread M37x0.75;
  • video camera f=12.5 mm provided with thread M40.5x0.5.

Specifications

Angular resolution, arc. sec for ambient illumination 5.10-3 lx 50
Magnification, x 9
Field of view, deg 3.83
Eyepiece adjustment range, d ±4
Reticule scale division, mil 5
Voltage, V 3.0
Current consumption, mA, not less 40
Azimuth angle range, deg 360
Elevation angle range, deg ±18
Weight, kg, not less 12
Weight with tripod, kg, not less 25
Package weight, kg, not less 40
