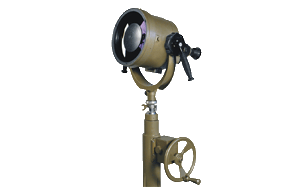

PDN-KM


Long Range Night Vision Device


Gen 2+ high-quality night vision devices perfect for a long-range surveillance under the natural night illumination.

Features:

  • generation 2+ or 3 image intensifier;
  • automatic screen brightness control circuit;
  • high-light cutoff protection circuit;
  • traverse 360o;
  • elevation range ±45o;
  • eyepiece adapter kit to photo and video cameras provided with light filter thread M37x0.75; M40.5x0.5;
  • removable diaphragm for high light conditions;
  • illuminated reticule;
  • soft rubber eyeshield;
  • operating temperature range from -50°C to +50°C,
    low temperature is limited by type of battery

Specifications

Focal lenght, mm 250
Magnification, x 9
Field of view, deg 3.8
Resolution under illumination 5x10-3 lx, cy/mr 5
Diopter abjustment range, d ±4
Focus range, m 200-?
Power supply voltage, V 3
Batteries AA 2, batteries
Maximal consumption current at T=20±5oC, mA, without illuminator / with illuminator 40 / -
Overall dimensions, mm 410х420х410
Weight, kg 13
