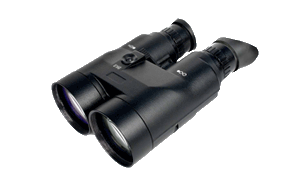

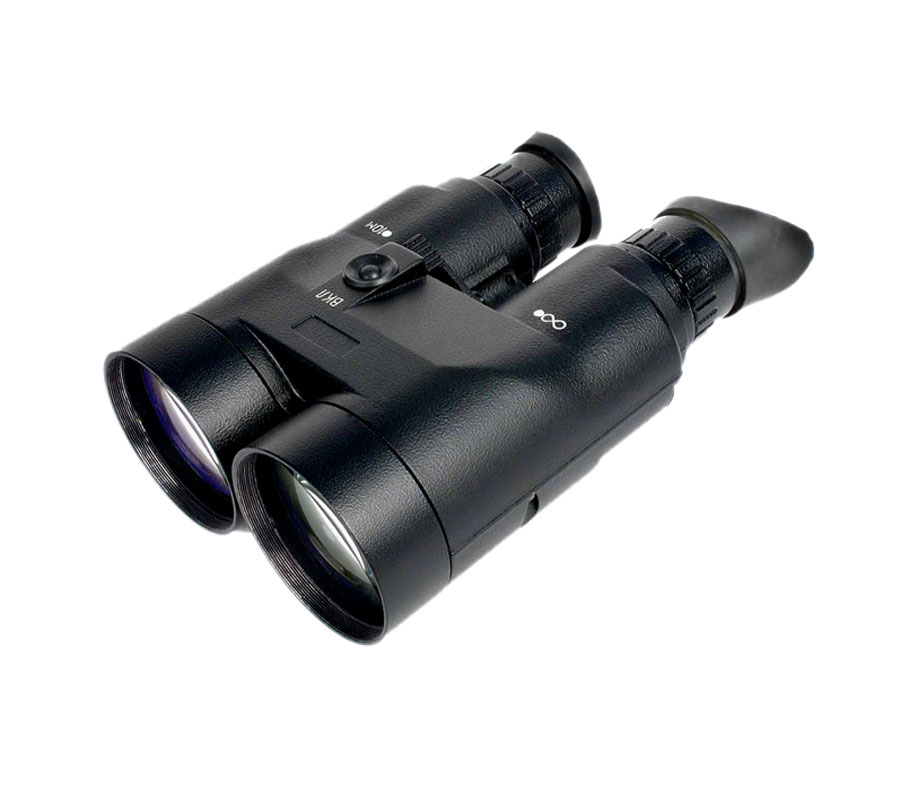

PN-11K


Night vision binocular


For terrain observation and reconnaissance under natural starlight and moonlight illumination or using built-in infrared illuminator. The device has two image intensifiers of 2+ generation providing complete stereoscopic image.

  • two image intensifiers of 2+ or 3 generation;
  • automatic screen brightness control circuit;
  • high-light cutoff protection circuit;
  • built-in IR illuminator;
  • refracting lenses;
  • removable light filter for high light conditions;
  • soft rubber eyeshield;
  • interpupillary abjustment;
  • illuminator operation indication;
  • battery state indication;
  • operating temperature range from -50°C to +50°C, low temperature is limited by type of battery

Specifications

Focal lenght, mm 90
Magnification, x 5
Field of view, deg 11
Resolution under illumination 5x10-3 lx, cy/mr 2.6
Diopter abjustment range, d ±5
Focus range, m 10-?
Power supply voltage, V 1.5
Batteries AA battery
Maximal consumption current at T=20±5oC, mA, without illuminator / with illuminator 120 / 240
Overall dimensions, mm 202х130х64
Weight, kg 1.1
