PN-14K-1x

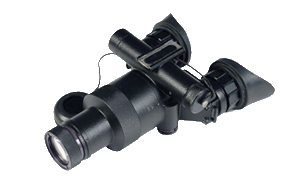

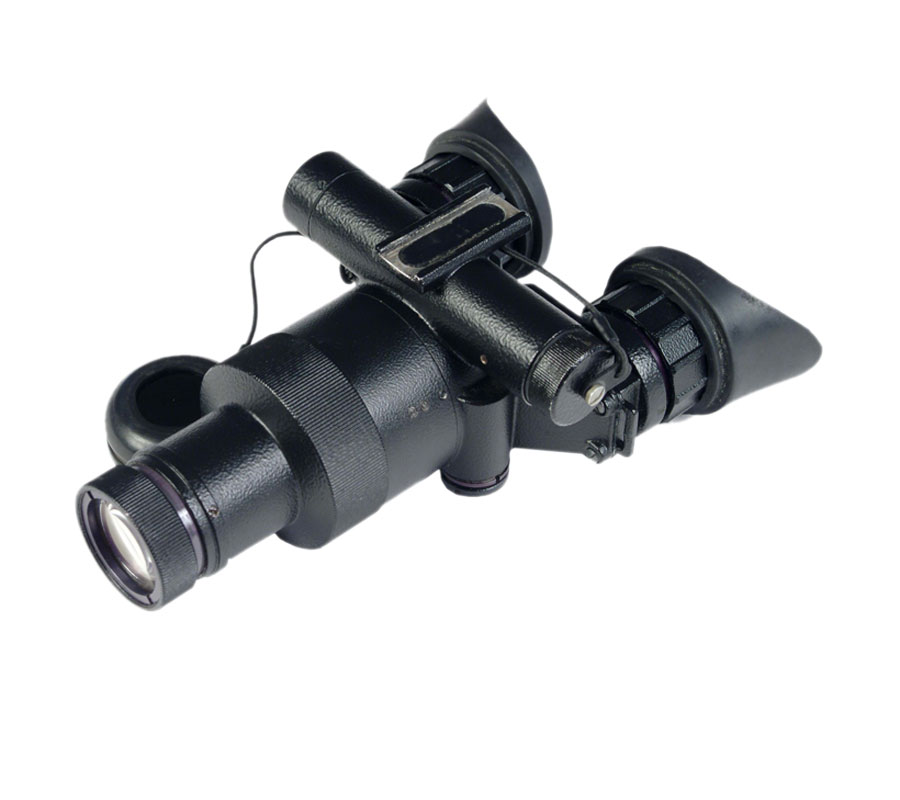

Night vision device


If you are looking for high-quality hands free night vision goggles perfect for night travel or camping, nature study or providing security for your house, law enforcement or urgent repairs in the darkness, we are proud to offer you our most convenient PN-14K Night Vision Goggles with 2+ or 3 generation image intensifier tube.

Features:

  • generation 2+ or 3 image intensifier tube;
  • automatic screen brightness control circuit;
  • high-light cutoff protection circuit;
  • built-in IR illuminator;
  • removable lenses 27F/1.25, 100F/1.5; 216F/2.3;
  • removable light filter for high light conditions;
  • soft rubber eyeshield;
  • design of the device provides comfortable observation at any interpupillary distance;
  • illuminator operation indication;
  • low battery indication;
  • dessication cartridge;
  • two variants of headmount;
  • rigid and watertight design;
  • operating temperature range from -50°C to +50°C,
    low temperature is limited by type of battery

Awards:
Silver Medal American-Russian Chamber of Commerce and Industry (ARCCI), Washington, 2003

Specifications

Focal length, mm 27
Magnification, x 1
Field of view, deg 40
Resolution under illumination 5x10-3 lx, cy/mr 0.82
Diopter abjustment, d ±4
Focus range, m 0.25-?
Power supply voltage, V 1.5
Batteries 1xAA battery
Maximal consumption current at T=20±5oC, mA, without illuminator / with illuminator 120 / 240
Battery life for continuous work without IR illuminator on at the temperature of +20oC, min, hours 24
Overall dimensions, mm 182х124х64
Weight, kg 0.5
0.75(with mask and w/o counterweights)
0.9(with mask and counterweights)


Used together with:

ZLN-1K
