PN-9K

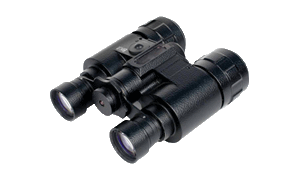

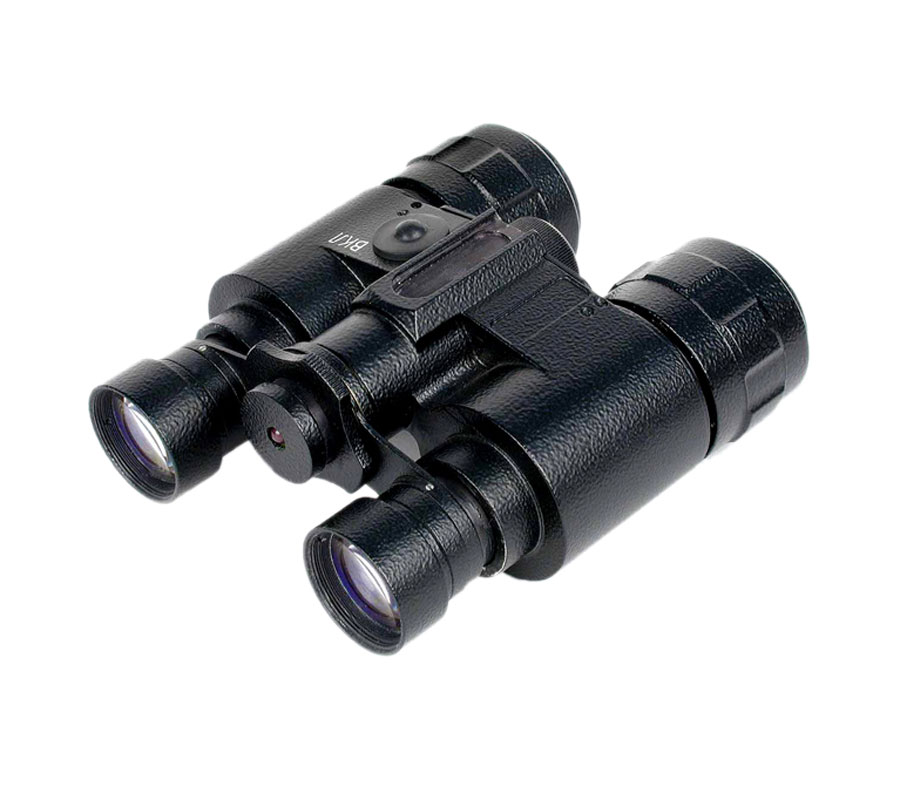

Binocular night vision goggles


PN-9K is a perfect lightweight dual eye goggle system, comfortable to wear and easy to use. Provided with a light head mask and little counterweights, PN-9K can be easily fastened on your head for hands free observation over a long period of time.

Features:

  • two image intensifiers of 2+ or 3 generation;
  • automatic screen brightness control circuit;
  • high-light cutoff protection circuit;
  • built-in IR illuminator;
  • removable diaphragm cups for high light conditions;
  • soft rubber eyeshield;
  • interpupillary abjustment;
  • rigid and watertight design;
  • illuminator operation indication;
  • battery state indication;
  • operating temperature range from -50°C to +50°C, low temperature is limited by type of battery

Specifications

Focal lenght, mm 27
Magnification, x 1
Field of view, deg 36
Resolution under illumination 5x10-3 lx, cy/mr 0.82
Diopter abjustment range, d ±3
Focus range, m 0.25-?
Power supply voltage, V 1.5
Batteries AA battery
Maximal consumption current at T=20±5oC, mA, without illuminator / with illuminator 120 / 240
Overall dimensions, mm 127х105х50
Weight, kg 0.5
0.75(with mask and w/o counterweights)
0.95(with mask and counterweights)
