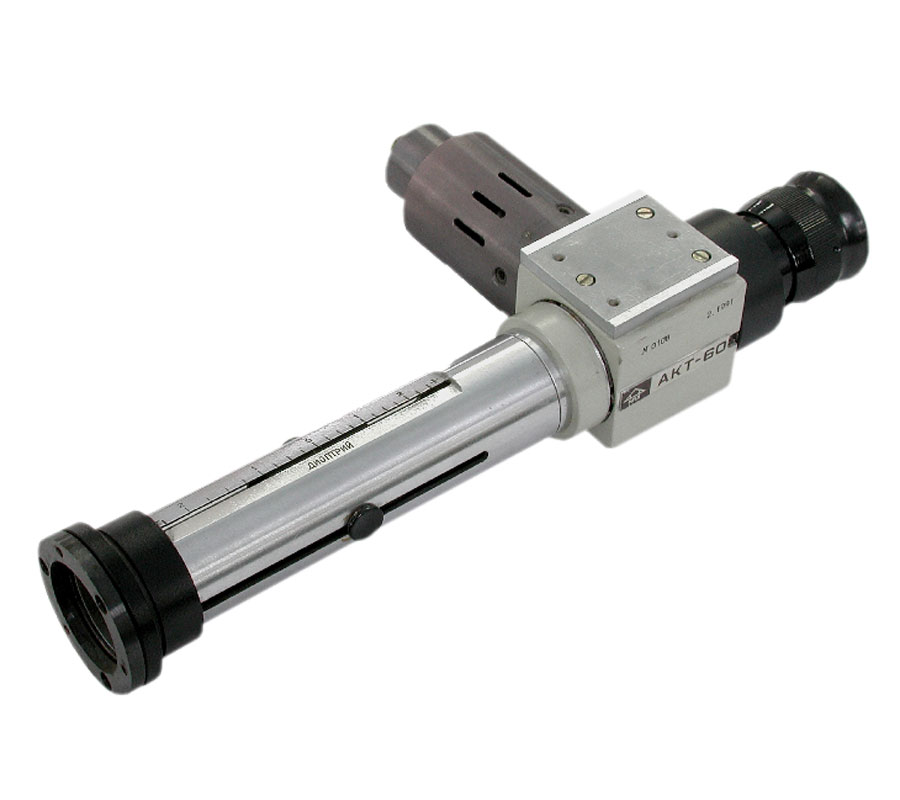

AKT-60
Autocollimator
For angle measurements and solutions in the field of optics, machine tools, assembly technology and research.
Applications
- Measuring the straightness
- Measuring the flatness
- Measuring the parallelism
- Measuring the angle and angular position
- Alignment
- Calibration
|
Specifications | |||||
| Model | AKU-0.2 | AKU -0.5 | AKU -1 | AKT -15 | AKT -60 |
| scale division, arc. sec | 0.2 | 0.5 | 1 | 15 | 60 |
| Measuring range, arc. sec | 10 | 20 | 40 | ± 25 | ± 60 |
| Accuracy single axis measurements | 1.5" | 3" | 5" | 10" | 45" |
| Accuracy two axis measurements | 3" | 6" | 10" | 15" | 60" |
| Magnification, x | 58 | 29 | 14.5 | 23 | 5.6 |
| Overall dimensions, mm | 535х130х145 | 430х130х145 | 300х130х145 | 450х70х130 | 240х120х38 |
| Weight, kg | 4.6 | 3.8 | 2.2 | 3.6 | 0.58 |
