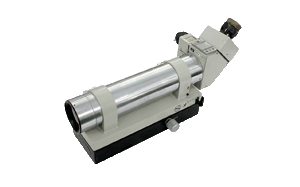

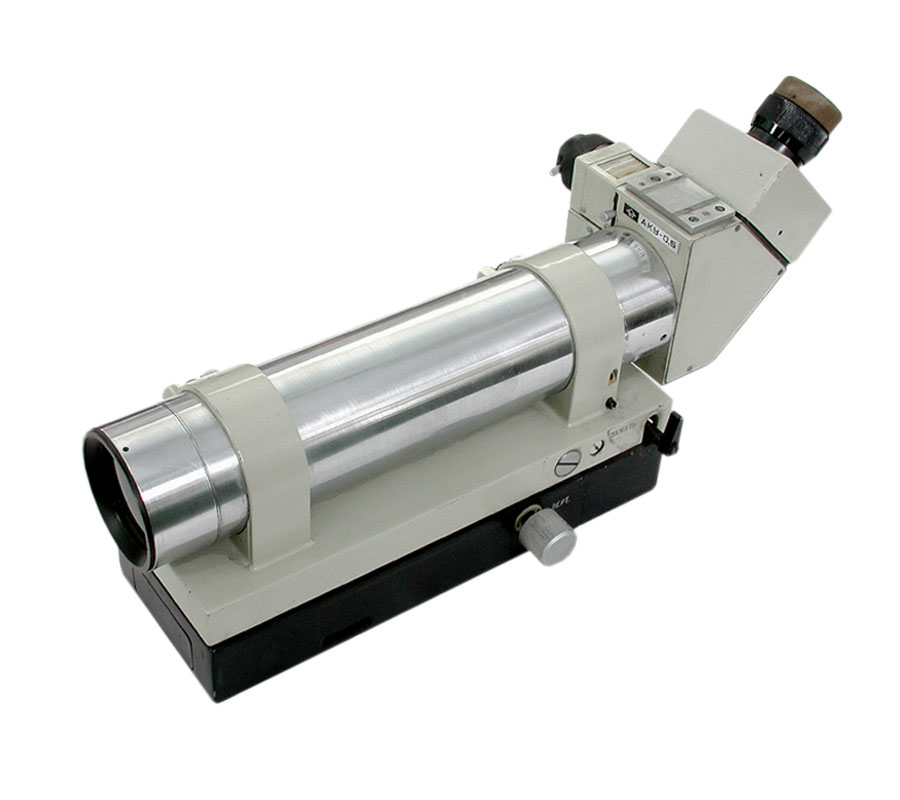

AKU-0.5


Autocollimator


For angle measurements and solutions in the field of optics, machine tools, assembly technology and research.

Applications

  • Measuring the straightness
  • Measuring the flatness
  • Measuring the parallelism
  • Measuring the angle and angular position
  • Alignment
  • Calibration

Specifications

Model AKU-0.2 AKU -0.5 AKU -1 AKT -15 AKT -60
scale division, arc. sec 0.2 0.5 1 15 60
Measuring range, arc. sec 10 20 40 ± 25 ± 60
Accuracy single axis measurements 1.5" 3" 5" 10" 45"
Accuracy two axis measurements 3" 6" 10" 15" 60"
Magnification, x 58 29 14.5 23 5.6
Overall dimensions, mm 535х130х145 430х130х145 300х130х145 450х70х130 240х120х38
Weight, kg 4.6 3.8 2.2 3.6 0.58
