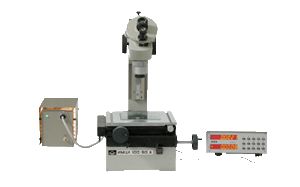

IMCL100х50A


Toolmaker's microscope


Toolmaker's microscope with linear sizes range 100 mm longitudinal direction and 50 mm transverse direction.

For measuring:

  • outer dimensions and shaft diameters;
  • angles up to 360° by means of angle measuring head or round table;
  • cutters, mills, cams and other tools or templates within table load capacity;
  • tap thread in pitch, angle and linearity;
  • thread gauges in pitch, angle, linearity and inner diameter;
  • taper gages, collets, bushings, radius profiles, distances between hole centres;
Measuring with reflected or transmitted illumination, in rectangular or polar coordinates are available.

Specifications

IMCL 100x50A IMCL 150x50B
Linear sizes range transverse direction, mm 0- 50 0- 50
Objective lens magnification, x 1,3,5,10, 20,40 1,1.5,3,5,10,20,40
Resolution, mm 0.0002
Max diameter measured, mm 85
Accuracy, mm ± 0.003
Overall dimensions, mm 370 x 355 x 540 450 x 570 x 590
Weight, kg 40 80
