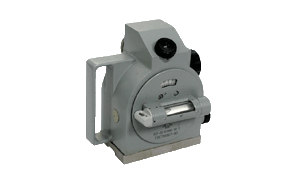

KO-10
Optical inclinometer
For determining the angles of inclination or slope of flat or cylindrical surfaces.
The KO-60M model is provided with magnetic clamp.
For measuring:
- angles of template gage
- cutting tool angles
- level sliders
- slideways and tables of machines
|
Specifications | ||
| КО-10 | КО-60, КО-60М | |
| Accuracy, arc. sec | ± 10 | ± 30 |
| Scale division, arc. sec | 10 | 60 |
| Scale angular range,0 | 0-360 | ± 120 |
| Division of main level scale, arc. sec | 15 | 30 |
| Division of fine dial scale, arc. sec | 20 | 60 |
| Division of coarse dial scale, o | 5 | 1 |
| Overall dimensions, mm | 165х120х165 | 155х90х160 |
| Weight, kg | 4 | 3.5 |
