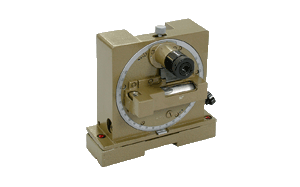

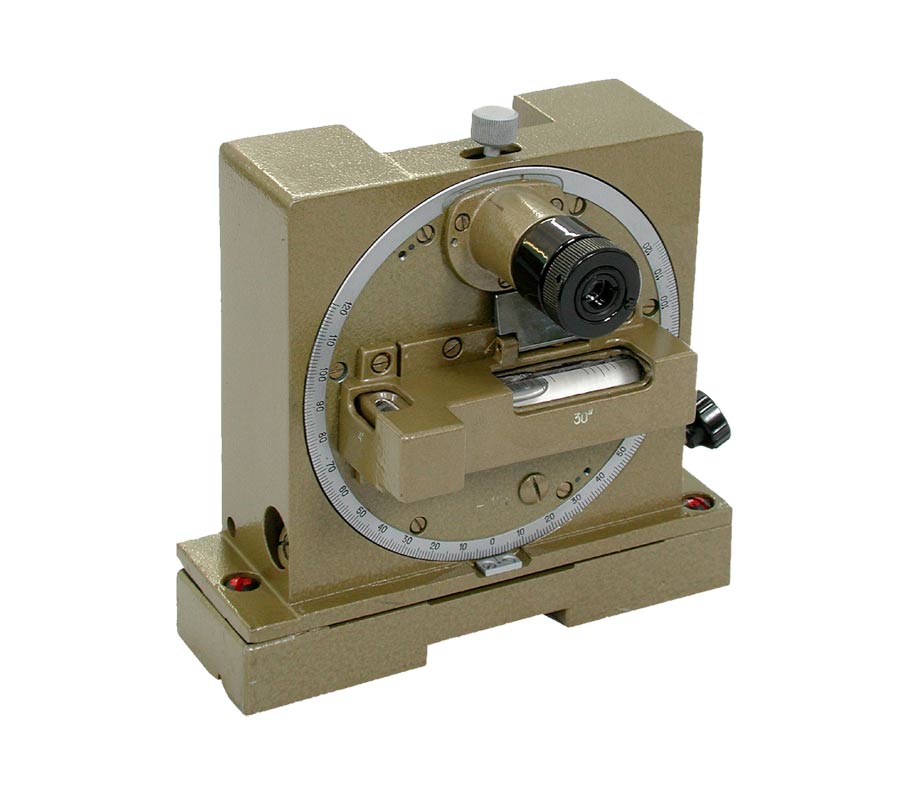

KO-60M


Optical inclinometer


For determining the angles of inclination or slope of flat or cylindrical surfaces.
The KO-60M model is provided with magnetic clamp.

For measuring:

  • angles of template gage
  • cutting tool angles
  • level sliders
  • slideways and tables of machines

Specifications

КО-10 КО-60, КО-60М
Accuracy, arc. sec ± 10 ± 30
Scale division, arc. sec 10 60
Scale angular range,0 0-360 ± 120
Division of main level scale, arc. sec 15 30
Division of fine dial scale, arc. sec 20 60
Division of coarse dial scale, o 5 1
Overall dimensions, mm 165х120х165 155х90х160
Weight, kg 4 3.5
