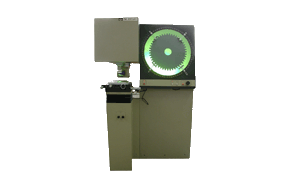

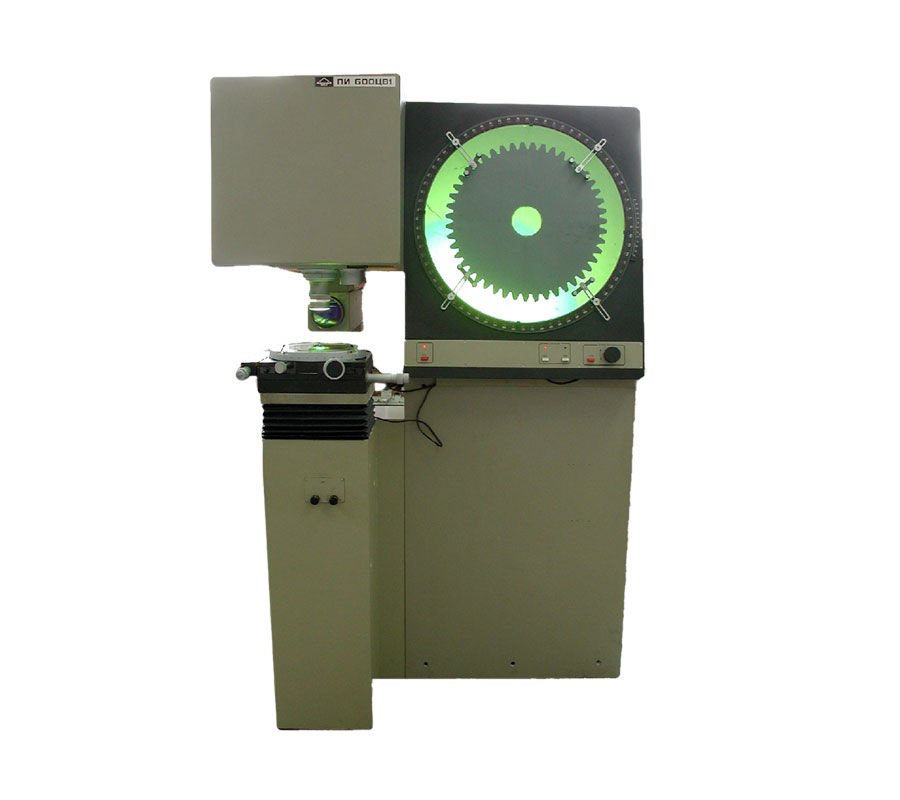

PI-600CV1


Projection instrument


For measuring linear and angular sizes under reflected or transmitted illumination.
Application: instrument building, electronic industry, watch-making industry, scientific research.

Specifications

PI-360CV1 PI-600CV1
Screen diameter, mm 260 600
Magnification 10; 20; 50; 100; 200; 500 10; 20; 50; 100; 200
Measuring stage travel, mm:
longitudinal direction 50 150
transverse direction 25 75
vertical direction 85 90
Resolution, mm 0.001 0.001
Distortion, mm ± 0.2 ± 0.2
Overall dimensions, mm 700 х 800 х 1600 1700 х 2075 х 1950
Weight, kg 150 600
