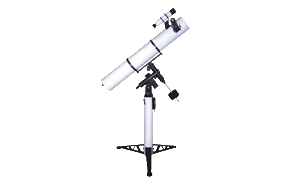

TAL-1, TAL-1M Newtonians


Astronomical Telescope


The astronomical telescopes with reflector objective lenses are intended for observation of the celestial objects and photographing of the various objects.

They are provided with a high quality of optics and design which allows to make an observation of celestial objects with highest possible comfort for user.

The telescopes are fixed on equatorial mounting which allows to determine the coodinetes of celestial objects with available accuracy. According to a customer's enqury the telescopes can be fixed on stiff pier or tripod. A stable position of tripod is provided with fixing of each supports of tripod in desirable position with the help of special stop mechanism.

The telescopes are completed with finderscope with field of view of 8°. They are completed with projection screen, black (solar) light filter, two 1/25" Plossl eyepieces of f'=25 mm, f'=10mm, 2x Barlow lens, solar screen.

Specifications

Aperture, mm 110
Focal length, mm 806
Focal ratio 1:7.3
Resolving power 1.3"
Limiting visual magnitude 11.5m
Magnification, min 32x (f=25mm)
Magnification, max 165x (f=10mm & Barlow 2x)
Optical scheme Newtonian
Range of slow-motion control on the axes within ±4°
Latitude range of mounting 0...70°
Focuser 1.25"
Magnification of the finderscope 6x
Angular field of finderscope
Voltage of the supplying mains, V 220 (110) ±10%
Current frequency, Hz 50 (60)
Output voltage of the supply unit, V 12
Dimensions, mm 885x800x1650
Weight of the telescope, kg 20
Weight of the telescope packed, kg 25
