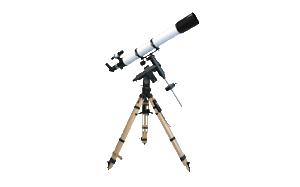

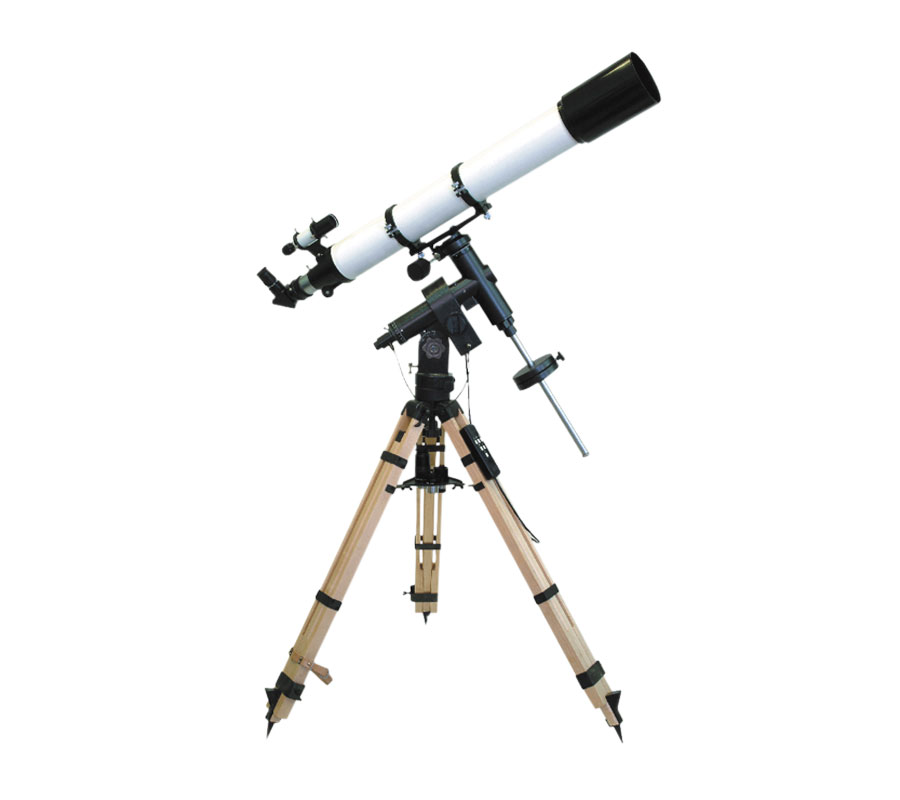

TAL-100RS refractor


Telescope


The telescope is designed for visual observations of celestial objects and for astronomical photography. It requires careful treatment and some knowledge of astronomy. Only in this case the use of telescope will bring satisfaction to its owner.
The telescope may be used at an ambient temperature ranging from 30° to -30°C.
When buying the telescope inspect the package to make sure that the original packaging is in good condition, and seals are not broken or missing. Having opened the package, check the presence of all components described in inventory list.
Read instruction manual first before using the telescope.

Specifications

Aperture, mm 100
Focal length, mm 1000
Focal ratio 1:10
Resolving power 1.3"
Limiting visual magnitude 11.2m
Magnification, min 40x
Magnification, max 160x
Finderscope magnification, x 6
Finderscope aperture, mm 30
Focuser 1,25";2"
Right ascension turning angle 360°(24 ч)
Declination turning angle ±90°
Latitude adjustment range 0...70°
Input voltage V AC 220
Frequency, Hz 50
Power, Watts 5
Output voltage, V 12 DC
Dimensions, mm, OTA* length/Telescope height 1080/1450
OTA weight, kg 4.3
Telescope weight, kg 23
