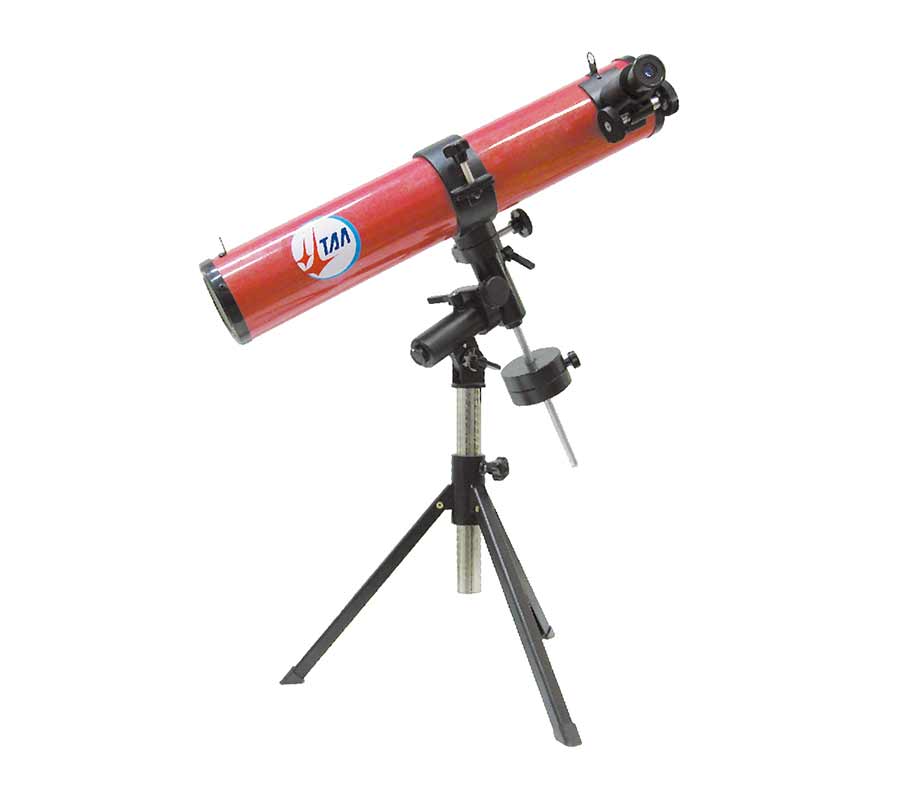

TAL-65 Newtonian


Telescope


The telescope TAL-65 (hereinafter referred to as the telescope) is designed for visual observations of celestial objects.
The telescope can be used for individual observations by ama-teur astronomers, in the schools, in the astronomic societies.
The telescope may be used at an ambient temperature ranging from 30° to -30°C and the relative humidity not more than 80%, on the assumption of fair weather.
Read instruction manual first before using the telescope.

Specifications

Aperture, mm 65
Focal length, mm 500
Telescope magnification and angular field, With eyepiece f’ = 15mm/With eyepiece and Barlow lens/With eyepiece, Barlow lens and plug 30х,1°15' / 90х,0°25' / 130х0°15'
Resolving power 2.2"
Limiting visual magnitude 11m
Right ascension turning angle 360° (24h)
Declination turning angle ±90°
Latitude adjustment range 0…90°
Minimum observation range ~ 25 m
Dimensions, mm, OTA* length/Telescope height 470/620
Telescope weight 3.6kg
