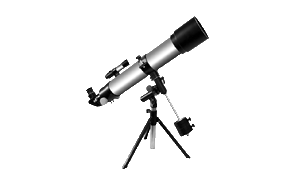

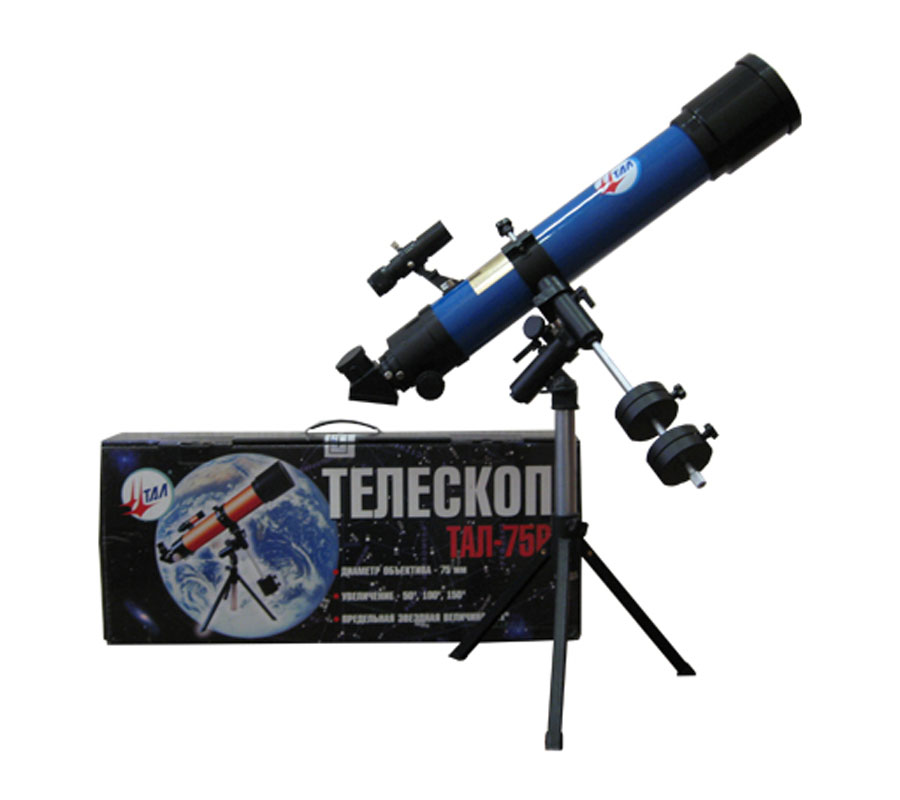

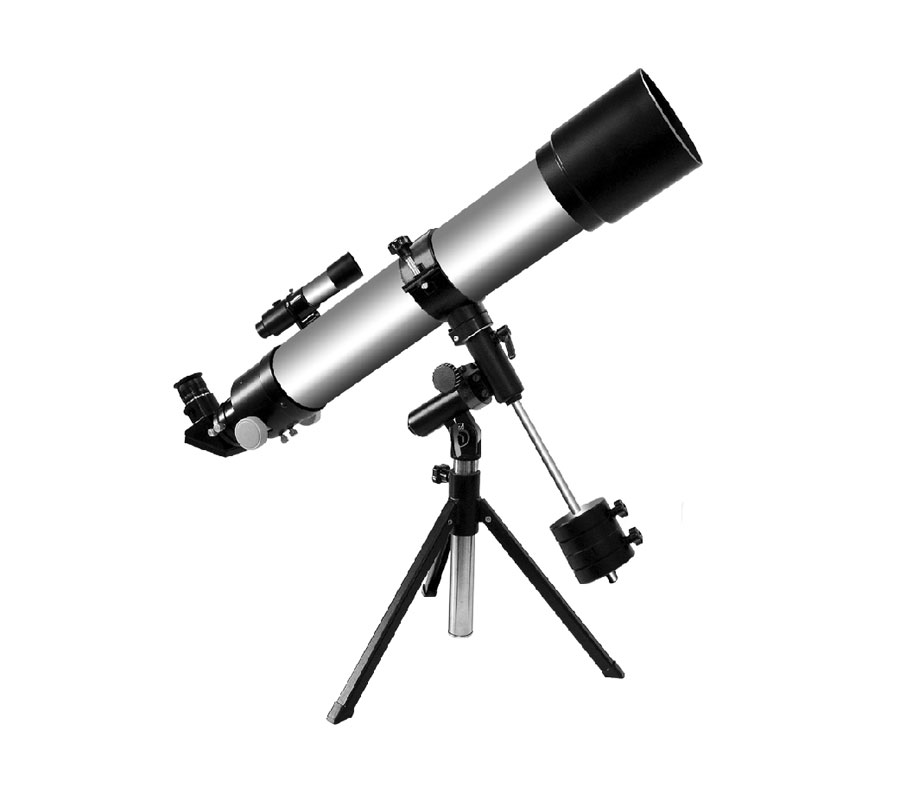

TAL-75R refractor


Telescope


Compact 75-mm refractor at the table tripod.

Specifications

Aperture, mm 75
Focal length, mm 600
Focal ratio 1:8
Resolving power 1.8"
Limiting visual magnitude 11.2m
Magnification 50x, 100x, 150x
Angular visual field, min 60', 30', 20'
Optical scheme Refractor
Length of tube, mm 640
Latitude range of mounting 0...90°
Focuser 2" / 1.25"
Magnification of the finderscope 4x
Angular field of finderscope 12°
Voltage of the supplying mains, V 220 (110) ±10%
Weight of the tube, kg 2
Weight of the telescope, kg 4.5
Weight of the telescope packed, kg 5
